Technical Specifications
Screen
- Size: 10.1” (256.54 mm) diagonal
- IPS (In-Plane Switching)
- LCD Panel with LED Backlighting
- Resolution: 1280 x 800 resolution
- Touch: Capacitive, 10 points multi-touch
- Brightness: 400 nits
- Contrast: 1000:1
- Anti Fingerprint: Oleophobic coating
- Viewing angle: 85 degrees (U/D/L/R)
- Position angle: 0 degrees (flat on mounting surface)
General Specifications
- Integrated accelerometer
- Integrated ambient light sensor
- 100 mm x 100 mm VESA FDMI
- Cable exits: horizontal / vertical / center
COMPATIBILITY AND CERTIFICATIONS
- Logitech Tap Scheduler integrates with leading room scheduling solutions as a
- Logitech Room Booking
- Microsoft Teams Panel
- Zoom Rooms Scheduling Display
- Robin-Powered scheduling panel
- Appspace
- RICOH Spaces
- Envoy Rooms
- Korbyt Booking
- Comeen
- See www.logitech.com/support/tapscheduler-compatibility for the latest certification and compatibility information.
- Logitech CollabOS platform
- Logitech Sync Remote Management
Power and Cables
- Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device.
- *Requires PoE enabled network or PoE Injector and ethernet cable (Not included)
PORTS AND INTERFACES
- Ethernet: 10/100 Mbps
- WiFi: 802.11a/b/g/n/ac/ax
- Bluetooth 5.0 (inactive, reserved for future use)
Environmental
- Operating temperature: 0 to 40°C
- Storage temperature: -40 to 70°C
- Humidity: 10-95%
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Key Protection: Arm TrustZone
Sustainability
- Graphite plastics: 54% post-consumer recycled material

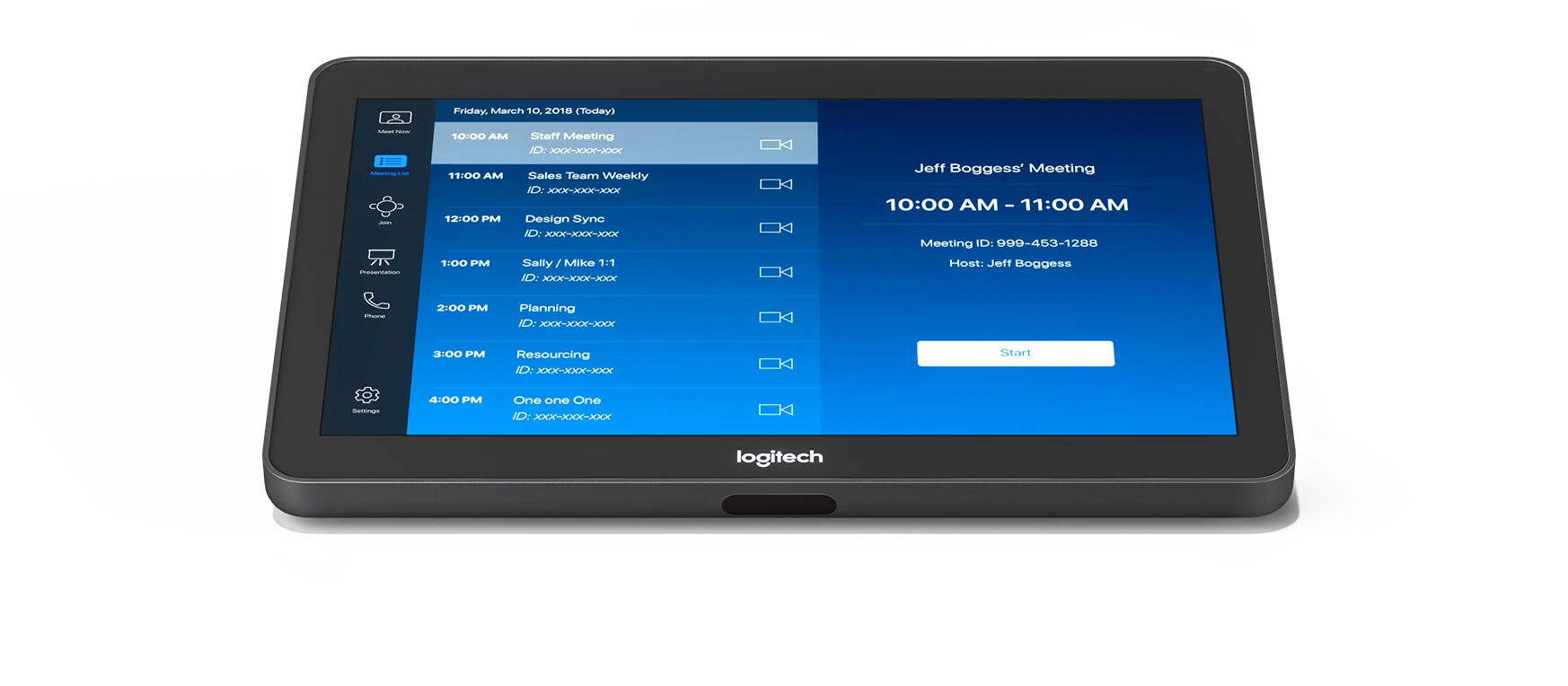

Logitech Tap Scheduler – Room Scheduling Made Simple
The Logitech Tap Scheduler is a purpose-built scheduling panel designed to simplify meeting room management. Featuring a 10.1-inch anti-glare touchscreen, Tap Scheduler displays room availability, upcoming meetings, and allows users to reserve rooms on the spot—with just a tap.

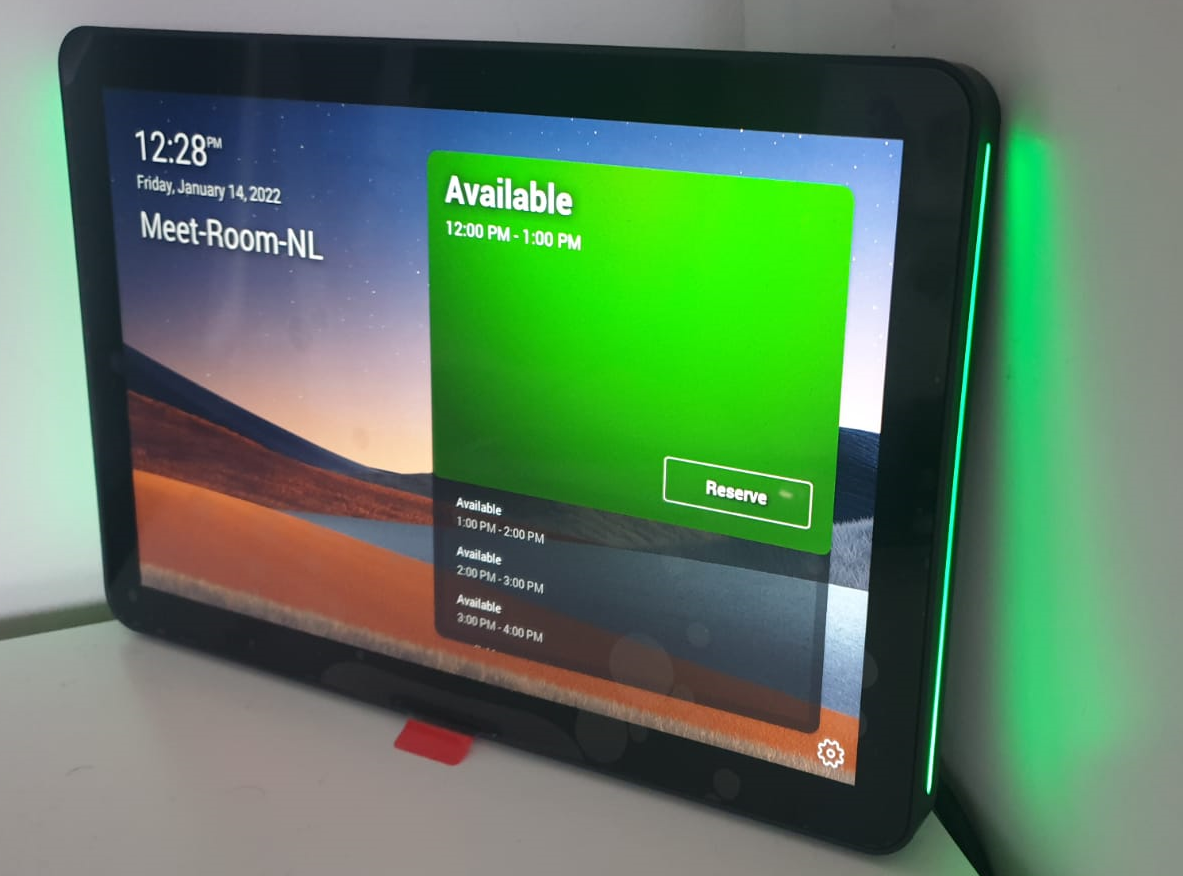

It features bright LED light bars that make room status visible from a distance—green for available, red for occupied. With Power over Ethernet (PoE) support and a range of secure mounting options (glass, wall, mullion), installation is fast and clutter-free.
Tap Scheduler is compatible with leading room scheduling solutions, including Microsoft Teams, Zoom Rooms, Robin, and Meetio, allowing seamless integration into your existing workplace ecosystem.
Now available at Tavin Electronics, the Logitech Tap Scheduler is ideal for corporate offices, co-working spaces, and education campuses in Kenya.
